Namco Diehead Style DS – Detailed Information

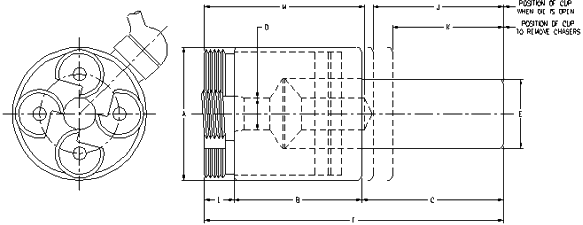

Diehead Sizes

Diehead

Dimension (inch)

size A B C D E F G H J K L N P
5/16 1.938 1.131 1.75 0.75 0.375 1.375 0.375 3.938 1.563 1.375 0.375 1.938
3/8 2.625 1.719 2.281 1 0.563 1.375 0.375 5.359 2.063 1.688 0.797 2.469 0.25
9/16 2.875 1.875 2.625 1.5 0.625 1.844 0.563 6.109 2.406 1.875 0.781 3 0.25
13/16 3.625 2.063 2.563 1.5 0.875 1.938 0.563 6.219 2.219 1.813 0.781 3.25 0.25
1 4.063 2.25 2.688 1.5 1.063 2 0.563 6.531 2.375 1.875 0.781 3.5 0.375
1.1/16 3.875 2.063 2.563 1.5 1.125 2 0.563 6.219 2.219 1.813 0.781 3.25 0.375
1.5/8 4.875 2.25 3.625 2.75 1.688 3.5 0.75 7.875 3.281 2.688 0.984 4.594 0.75
