Namco Dieheads - Style DS
 Designed for use on Turret and Capstan lathes, the DS Diehead is especially recommended for threading close to the shoulder and into undercuts. Its unique self-opening action allows chasers to move back from the shoulder immediately the Diehead opens. Chasers and blocks are interchangeable between DS and DR Dieheads of the same capacity.
Ideal for:
- Parallel and taper threads
- Right and left hand threads

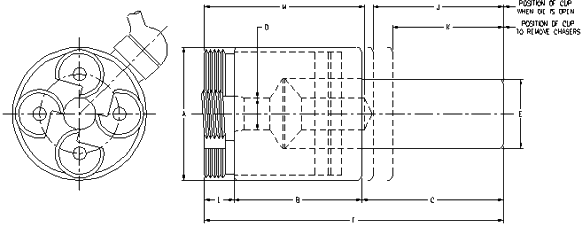

Diehead Sizes
|
Diehead
|
Dimension - inch
|
|
size
|
A
|
B
|
C
|
D
|
E
|
F
|
J
|
K
|
L
|
M
|
|
3/8
|
2.625
|
2.125
|
3.688
|
0.563
|
1.000
|
6.578
|
3.469
|
3.000
|
0.797
|
2.781
|
|
9/16
|
2.875
|
2.844
|
3.781
|
0.625
|
1.500
|
7.484
|
3.531
|
3.000
|
0.781
|
3.656
|
|
13/16
|
3.625
|
2.188
|
4.625
|
0.875
|
1.500
|
8.578
|
4.281
|
3.750
|
0.781
|
3.906
|
|
1
|
4.063
|
2.344
|
4.625
|
1.063
|
1.500
|
8.734
|
4.281
|
3.750
|
0.781
|
4.063
|
|
1.5/8
|
4.875
|
2.844
|
5.781
|
1.688
|
2.125
|
10.609
|
5.406
|
4.750
|
0.984
|
4.594
|
DS Diehead Capacities
|
Diehead
|
|
|
Straight threads
|
|
|
Pipe
|
|
Coarsest
|
|
Size
|
|
Minimum
|
|
Maximum
|
|
threads
|
|
pitch
|
|
inch
|
|
inch
|
mm
|
|
inch
|
mm
|
|
inch
|
|
tpi
|
|
3/8
|
|
3/16
|
4.80
|
|
3/8
|
9.50
|
|
1/8
|
|
16
|
|
9/16
|
|
1/4
|
6.35
|
|
9/16
|
14.30
|
|
1/4
|
|
11
|
|
13/16
|
|
1/4
|
6.35
|
|
13/16
|
20.60
|
|
1/8
|
|
9
|
|
1
|
|
3/8
|
9.50
|
|
1
|
25.40
|
|
1/2
|
|
8
|
|
1.5/8
|
|
1/2
|
12.70
|
|
1.5/8
|
41.27
|
|
1
|
|
6
|
